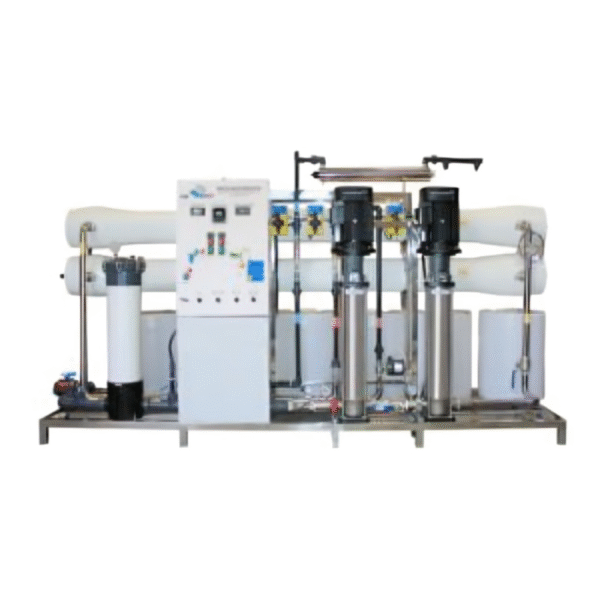

The RO System 30,000 GPD is a reliable and efficient reverse osmosis system designed for medium to large scale industrial water purification needs. Equipped with advanced components and smart automation, it guarantees high water quality, operational safety, and ease of maintenance.

Technical Specifications:

• Flow Rate: 113.5 m³/day at 25°C

• Salt Rejection: 95% – 98%

• Recovery Rate: 45% – 55%

• Concentrate Re-Circulation: Optional

• RO Membranes: Thin Film Composite (TFC)

• High Pressure Pump: Stainless Steel Vertical Multi-Stage Centrifugal Pump

• Pressure Vessels: FRP

• Pre-Filter: Polypropylene 5 Micron with UPVC Housing

• High Pressure Piping: 316 Stainless Steel, Schedule 40

• Low Pressure Piping: PVC, Schedule 40

• Inlet Valve: Solenoid Automatic Feed Valve

• Flow Control Valves: Stainless Steel

• Flushing System: Automatic Membrane Feed Flush with Permeate Flush Option

• Protection Switch: Low Inlet Pressure Switch

• Pressure Gauges: Liquid-filled for Filter In/Out, Pump, and Concentrate

• Flow Meters: Product & Concentrate

• TDS/Conductivity Meter: Digital Display for Product Water Quality

• Cleaning Ports: Integrated

• System Control: Automatic ON/OFF with Dual-Level Tank Float Switches

• Frame: Heavy-Duty Stainless Steel 304
