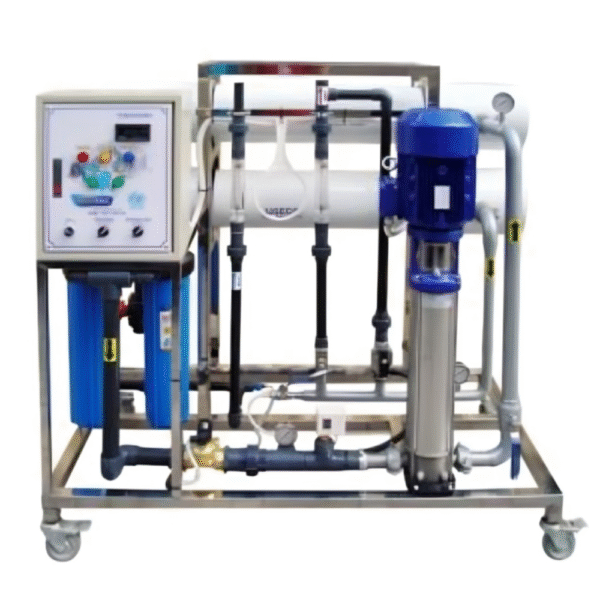

The RO System 12,000 GPD is a high-efficiency industrial reverse osmosis water treatment unit, engineered to deliver large volumes of purified water with superior performance. With a strong stainless steel structure and premium-grade components, this system is designed for continuous operation, high recovery rates, and easy maintenance. It’s ideal for facilities requiring dependable, high-volume water purification.

Technical Specifications:

• Model No: KWTRO-12,000/5,000

• RO Capacity: 12,000 GPD (Gallons Per Day)

• Flow Rate: 48 m³/h at 25°C

• Salt Rejection: 96% – 99%

• Recovery Rate: 35% – 45%

• RO Membranes: 8040 × 2 pcs

• RO Pressure Vessels: FRP (8040 × 2 pcs)

• High Pressure Pump: 4 kW, 380V, 50 Hz

• Pre-Filters: 5 micron PP, 20″ × 2 (Big Jumbo)

• Flow Meters: For pure water and drain water

• Valves: Low-pressure and high-pressure

• Frame Material: Stainless Steel 304 (Tube Welding)

• Pressure Display: All pressure readings visible on main control panel

• High Pressure Piping: Schedule 40, SS 316

• Low Pressure Piping: Schedule 80, UPVC

• Check Valve: High-pressure type

• Recycle Flow Valve: Included

• Cleaning & Disinfection Ports: Inlet/outlet pipes provided (CIP system not included)
